Description

The TSXCDP503 is a high-quality connecting cable designed by Schneider Electric for use within the Modicon Premium PLC system. With a length of 5 meters,

it provides a reliable and efficient connection between I/O modules (such as TSXCAY, TSXCCY1128, TSXCFY, and TSXCTY series) and

Telefast sub-bases (like ABE7H16R20), forming an integral part of Schneider’s Telefast 2 pre-wired interface system.

Frequently Asked Questions About TSXCDP503

Q1: What is the main use of the TSXCDP503 cable?
A: It connects Schneider Premium PLC I/O modules to Telefast sub-bases like the ABE7H16R20, ensuring simplified and pre-wired signal transmission.

Q2: What are the connector types on each end?
A: Both ends feature a 20-way HE-10 connector—one male and one female—ensuring secure, direct connection to corresponding interfaces.

Q3: Is the TSXCDP503 RoHS and REACh compliant?
A: Yes. It carries the Green Premium label, signifying full compliance with environmental standards like RoHS and REACh.

Q4: Can this cable be used with any Modicon PLC?
A: It is specifically designed for use with Modicon Premium PLC modules and their compatible sub-bases. Check module compatibility before use.

Inquiry now: miya@mvme.cn

As a leading global distributor of over one million hard-to-find industrial parts, Moore is dedicated to supporting system

integrators and suppliers in overcoming challenges related to parts shortages and extended delivery times. Our extensive

inventory spans a wide range of components, including those that are often difficult to source or no longer in

production, ensuring that you have access to the critical parts needed for your operations.

Our commitment goes beyond simply providing parts; we offer a comprehensive solution to reduce the risk of unforeseen

shortages that can disrupt your projects and delay your timelines. By leveraging our global network and expertise,

Moore helps streamline the procurement process, offering fast and reliable access to essential components. This proactive

approach not only helps minimize downtime but also allows you to maintain the efficiency and continuity of your industrial processes.

With Moore, you can trust that we are continuously working to enhance our inventory and supply chain capabilities,

ensuring that even the most elusive parts are within your reach. Our goal is to be a dependable partner in your

supply chain, providing the solutions you need to keep your systems running smoothly and your projects on track.

You May Need

Contact US

Ready to elevate your automation system? Contact us today for more information or to make a purchase:

Skpye:miyazheng520

Miya Zheng

miya@mvme.cn (click) || 86-18020776792

CDP503 Schneider connecting cable

Schneider connecting cable CDP503

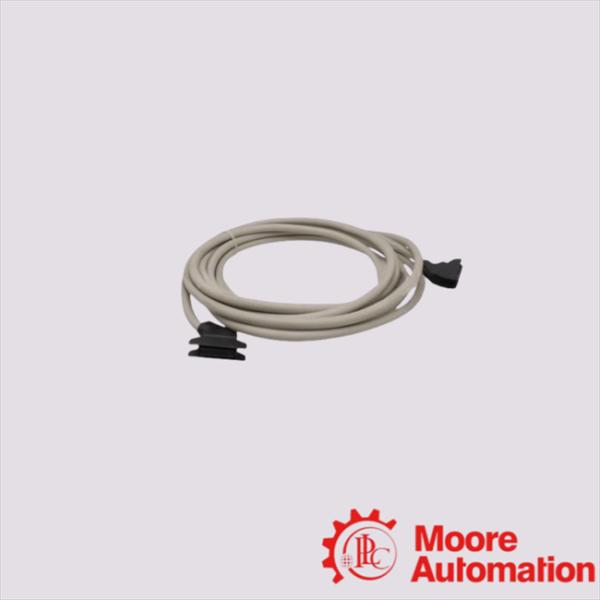

TSXCDP503 Schneider Connecting Cable Images
